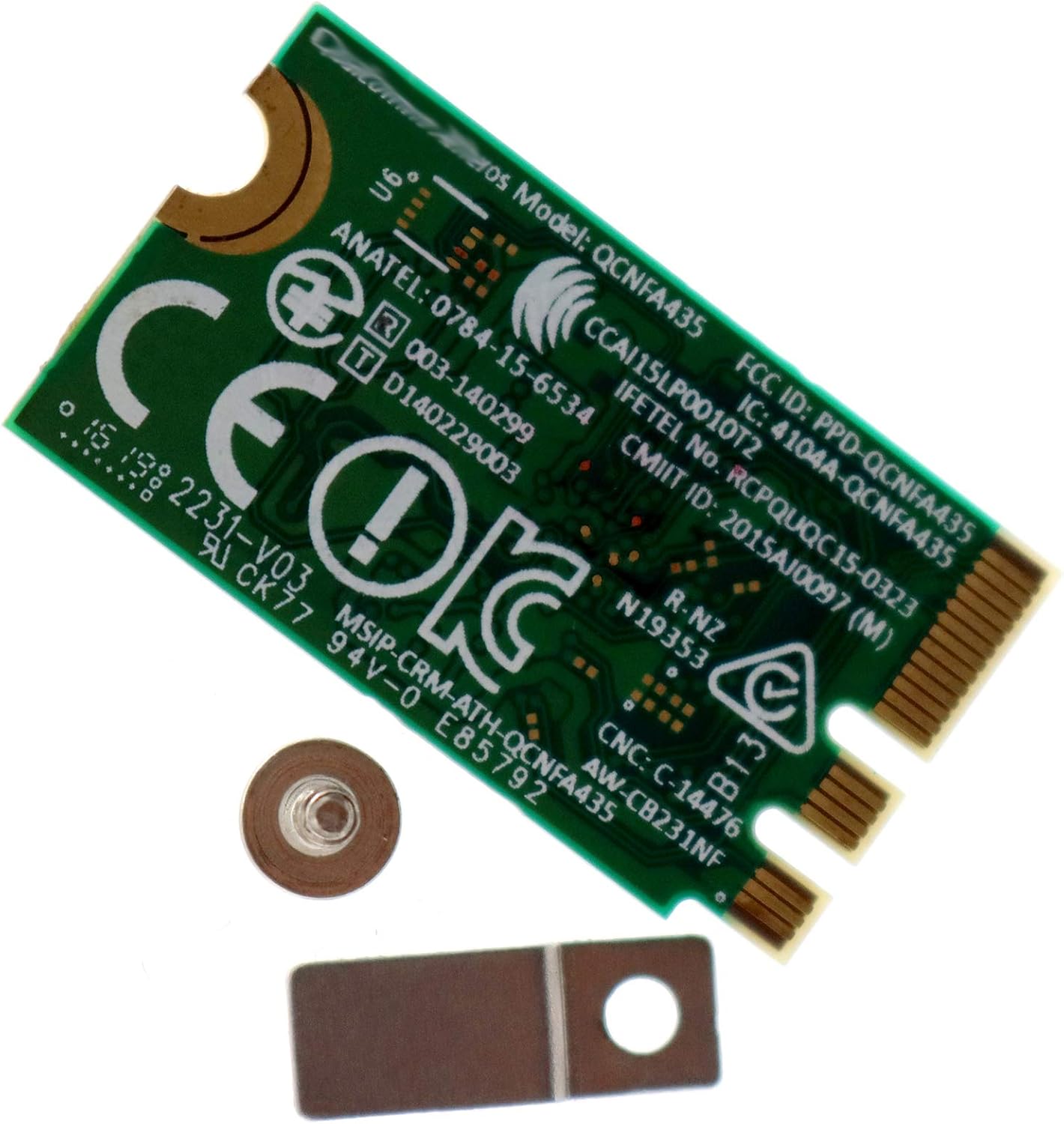

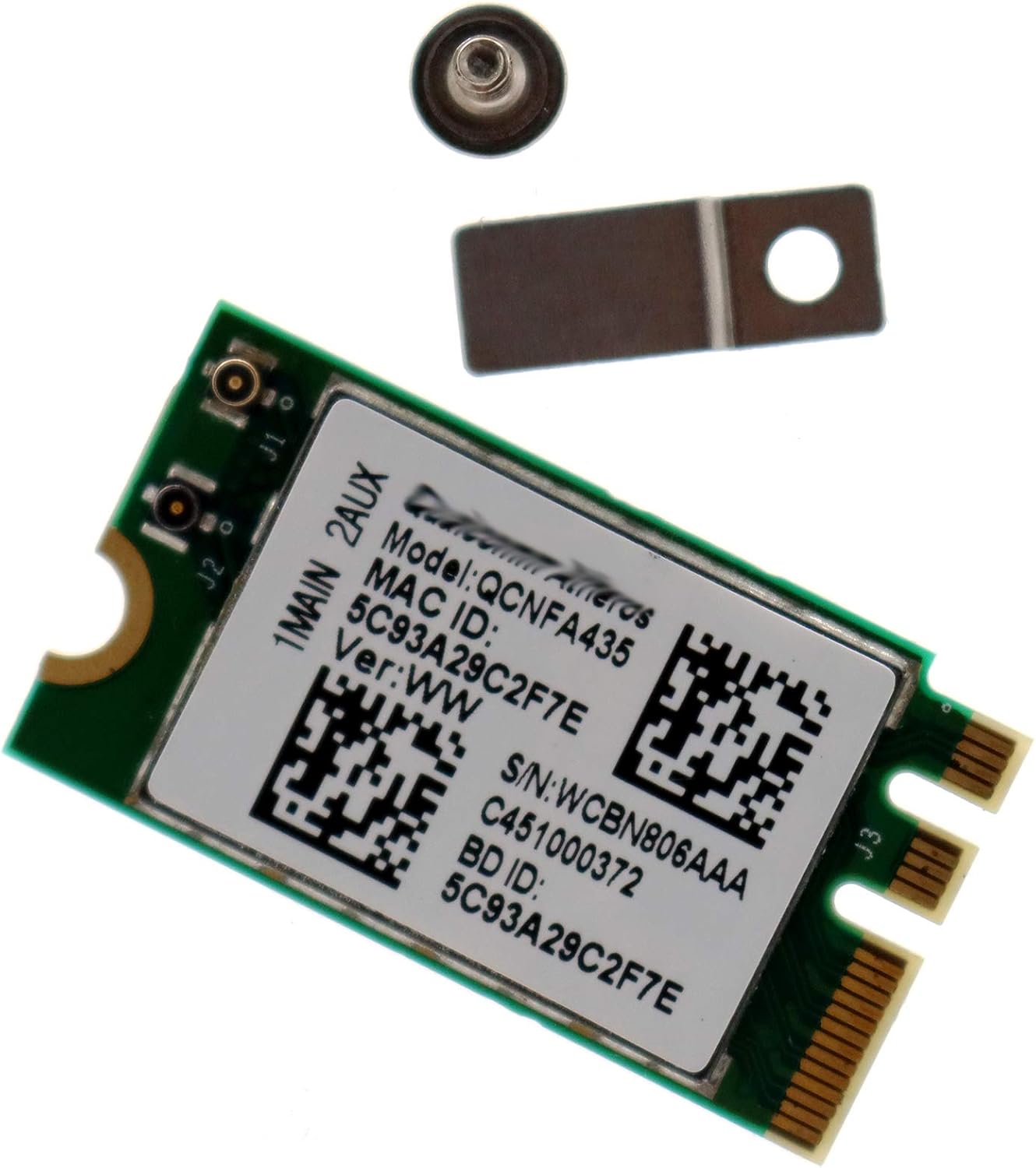

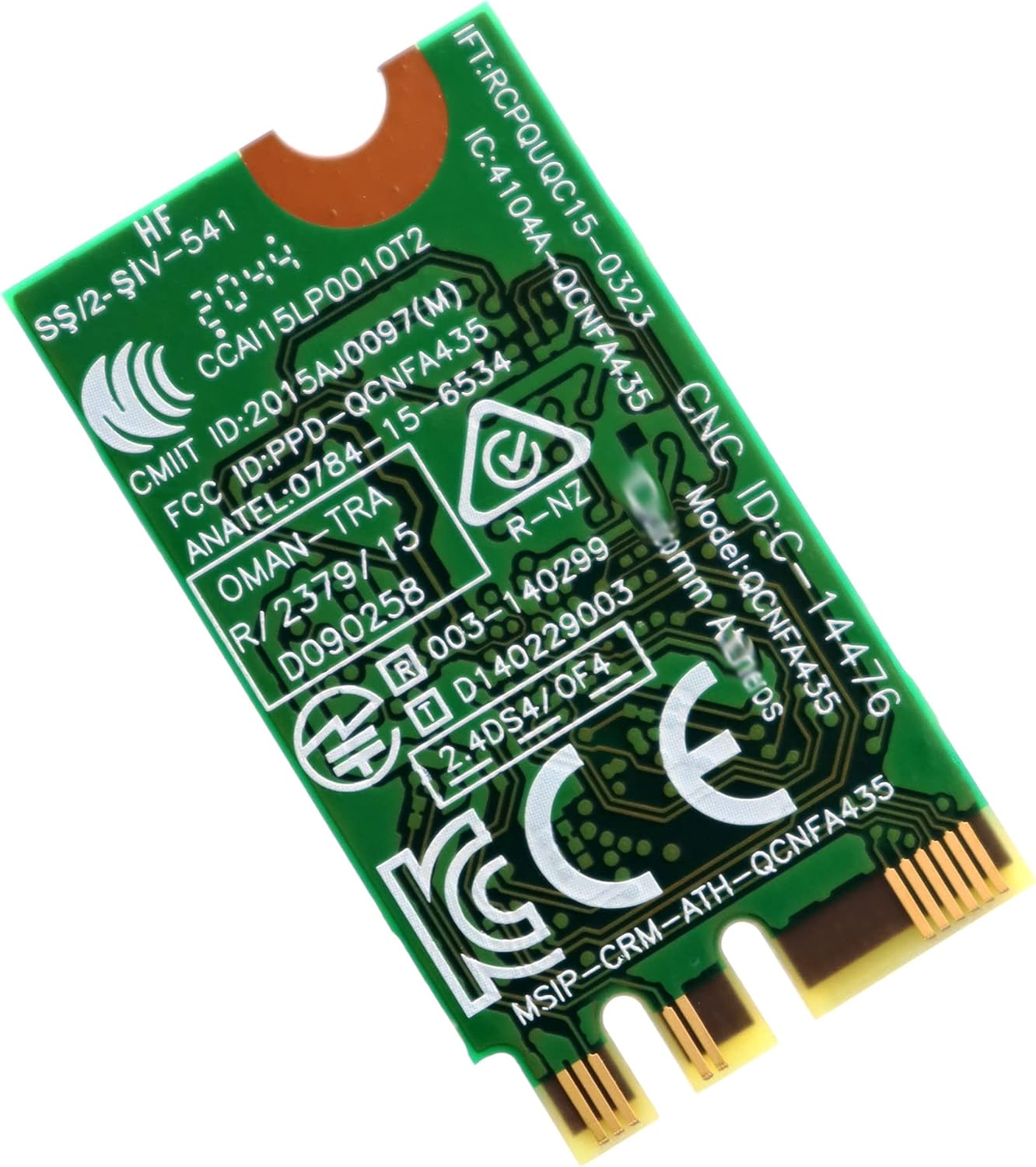

QCNFA435 QCA9377 802.11ac 433Mbps M.2 NGFF WiFi Adapter Wireless WLAN Card W/Bluetooth 4.1 for Dell DW1810 Qualcomm Atheros QCA9377 Windows 7,8,8.1,10,11(32/64bit)

Description

• upports 2.4GHz/5GHz Dual Band with Bluetooth 4.1, Works with Dell Inspiron 13 (7359), Latitude E7470, E5470, E7270 etc with NGFF M2 E or A Key Interface on mother board.
• Wireless 5GHz data rate up to 433Mbps, 2.4GHz up to 150Mbps.
• Connector interface: NGFF M2 E and A Key, IPEX4 Antenna connector.
• Supported Operating Systems: Work on Windows 10/7/8/8.1 32/64-bit).
• Compatible with Dell/Samsung/Sony/Acer/ASUS/MSi/Clevo/Terransforce/Gigabyte/Hasee etc Laptop PC. (NOt support IBM/Thinkpad/Lenovo/HP laptop).

Compatible Laptops: - Inspir0n 15 (5567), 15 (5565), 17 (5767), 17 (5765), 15 (3565), 15 (3567), 14 (3467), 15 (5576), 15 (5570), 15 (5575), 17 (5770), 17 (5775), 15 (3573), 15 (3576), 11 (3185) 2-in-1, 13 (7375) 2-in-1, 14 (3462), 14 (347, 3584), 14 (5481) 2-in-1, 15 (3583), 3595, 3593, 15 (3590), 3585, 3582, 3581, 5593, 5594, 3781
-Vostro 15 (3568), 14 (3468)

Specifications
Model: DW1810/QCNFA435
for D P/N: V91GK, 0V91GK
Connector interface: NGFF M2 E and A Key
System Interface Type: PCIe, USB
Antenna connector: IPEX 4 / iPX 4 Connector
Wireless data rate:
5GHz up to 433Mbps
2.4GHz up to 150Mbps
Streams: 2 x 2
Bluetooth: Bluetooth 4.1
Frequency: Dual Band 2.4GHz / 5GHz
IEEE Standard: IEEE 802.11 ac/a/b/g/n
Operating Systems: Windows 10/8.1/8/7 32/64-bit
Dimension (H x W x D ): 16 x 30 x 2.4 mm

Package Includes:
1x QCNFA435 QCA9377 M2 NGFF WLAN Adapter
